    Waterproof Round Load Cell Transmitter

    Ask Lasest Price
    Model Number : KCZ-201
    Brand Name : KACISE
    Supply Ability : 3000 Piece/Pieces per Week
    Price : $40.00 - $500.00/pieces
    • Product Details
    • Company Profile

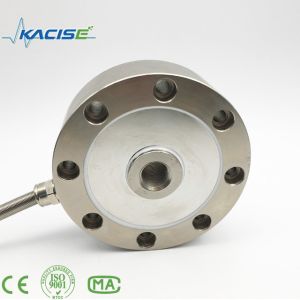

    Waterproof Round Load Cell Transmitter

    Waterproof Round Load Cell Transmitter

    RELATED PRODUCTS


    Waterproof Round Load Cell TransmitterWaterproof Round Load Cell TransmitterWaterproof Round Load Cell Transmitter

    Features

    Low profile with small deflection .Made of stainless steel Suitable for automotive press fit, automated assembly, 3CS products testing, new energy product accembly, medical testing, robotics, mold assembly and other industrial testing and controlling system


    Technical Specifications


    Capacity

    50, 100, 200, 300, 500kg

    Rated output

    2.0±0.1%mV/V

    Zero balance

    ±2%F.S.

    Non-linearity

    0.03%F.S

    Hysteresis

    0.03%F.S

    Repeatability

    0.03%F.S

    Creep (30min)

    0.03%F.S

    Temp.effect on output

    0.03%F.S/10

    Temp.effect on zero

    0.03%F.S/10

    Input impedance

    780±20ohm

    Output impedance

    700±10ohm

    Insulation

    5000M ohm/100VDC

    Recommended excitation

    5~15V

    Maximum excitation

    20V

    Compensated temp range

    -10~60

    Operation temp range

    -20~80

    Safe overload

    150%F.S

    Ultimate overload

    200%F.S

    Cable size

    Φ5x4000mm

    IP class

    IP69

    Capacity

    50, 100, 200, 300, 500kg

    Rated output

    2.0±0.1%mV/V

    Zero balance

    ±2%F.S.


    Dimensions and Connection


    Waterproof Round Load Cell Transmitter

    Product Display

    Proudct Display

    Waterproof Round Load Cell Transmitter

    Our Services

    • Your inquiry will be replied in 24hours.
    • Well-trained and experienced staffs to answer all your enquires in fluent English.
    • OEM&ODM, we can help you to design and your request will be put into product.
    • Distributorship are offered for your unique design and some our current models.
    • Protection of your sales area, ideas of design and all your private information.
    • Discounts are offered based on order quantities.
    • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
    Company Information

    Waterproof Round Load Cell Transmitter

    Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

    We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.


    Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.


    FAQ

    1. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

    OEM & ODM service are available. Welcome to visit us.

    2. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

    3. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

    4. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

    For mass production order, it is 30% deposit in advance and 70% balance before shipment.

    5. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

    And we now have USD104,000.00 of caution money to assure your orders.

    6. Q: Do you have a warranty?

    A: Yes, we have the warranty of 12 months.
