Product Description:

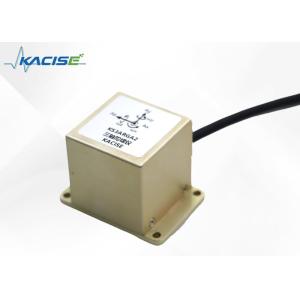

KS3ARGA2 Series Three-Axis Universal Angular Rate Gyro
The KS3ARGA2 series three-axis universal angular rate gyro is
designed to measure the angular rate sensor of moving carriers.
This gyroscope adopts MEMS technology chip, which provides high
performance, low cost, high reliability, and high package
robustness. It also has a Self-Test function to ensure accuracy and
reliability.
In addition, this product has several other useful features. It has
low power consumption, making it ideal for battery-operated
devices. It also has a wide operating temperature range, making it
suitable for use in harsh environments. The wide bandwidth enables
high-speed data transfer, and the small size allows for easy
integration into devices. The fast start and DC input DC output
make it convenient for use in various applications.
Features:
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
Technical Parameters:
| Parameter | KS3ARGA2 |
| Power supply parameter |
| Input voltage | 5V(Vdc) |
| Incoming currentmA | <10 mA |
| Offset voltage | 1.65±0.02(V) |
| Output voltage | 0.66～2.64(V) |
| Product performance |
| Range | ±300(X,Y,Z)(°/s) |
| Scaling factor | 3.3±0.05(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 100(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 43×30.5×30.5(mm) |
| Weight | ≤50(g) |
| zero-bias stability | 12(°/h) |
| Temperature drift | ≤±0.1(°/s/°C) |
| Environment |
| Operating temperature range | -45～+105(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
Dimensions
Applications:
Automotive Electronics
Automotive electronics refer to various electronic systems and
devices used in cars or vehicles. These electronic systems include
infotainment systems, engine control units, safety systems, and
more. Automotive electronics plays a critical role in enhancing the
functionality, safety, and comfort of modern cars.
Aircraft Guidance and Control
Aircraft guidance and control refers to the systems and devices
that ensure the safe and efficient operation of airplanes and other
aircraft. These systems include autopilots, navigation systems,
weather radar, and more. Aircraft guidance and control systems
improve safety by providing pilots and air traffic controllers with
real-time information and control capabilities.
Platform Stability
Platform stability refers to the ability of a platform or structure
to maintain its steady position despite external disturbances or
forces. Platform stability is important in many fields, including
marine, aerospace, and robotics, where stability is necessary for
smooth and safe operation. Platform stability is achieved through
the use of advanced control systems and sensors.
Robotics
Robotics is the interdisciplinary field of engineering and science
that deals with the design, construction, operation, and use of
robots. Robotics can be applied in a wide range of industries, such
as manufacturing, healthcare, and agriculture. Robotics technology
is rapidly advancing, promising to create new opportunities for
automation and efficiency.
Antenna Stabilization and Camera Gimbal
Antenna stabilization and camera gimbal refer to the systems and
devices used to stabilize antennas or cameras on moving platforms
such as drones, vehicles, or boats. These systems enable the
antennas or cameras to maintain their pointing direction and
stability despite the motion of the platform. Antenna stabilization
and camera gimbal technology is critical in applications such as
surveillance, search and rescue, and remote sensing.
Camera Pan-Tilt Unit
A camera pan-tilt unit, also known as a camera rotation or gimbal,
is the motorized device used for remote control of a camera's
direction and orientation. Camera pan-tilt units are widely used in
broadcast television, surveillance, and filmmaking. The camera
pan-tilt unit allows for precise control of the camera's movements,
enabling smooth and dynamic shots.
Support and Services:
Our Electronic Gyroscope Sensor product is backed by a
comprehensive technical support and service system, designed to
provide our customers with the help they need when they need it.
Our team of experienced technical support representatives is
available to assist with any questions or issues related to our
product.
In addition to our standard technical support, we offer a range of
services to help our customers get the most out of our Electronic
Gyroscope Sensor product. These services include:
- Customized product training and education
- On-site installation and integration support
- Remote monitoring and diagnostics
- Regular maintenance and calibration services
- Repair and replacement services, including expedited repair options
We understand that every customer has unique needs and
requirements, and we are committed to working closely with each of
our customers to provide customized support and services that meet
their specific needs. Whether you need help troubleshooting an
issue, installing our product, or maintaining and repairing it over
time, our team is here to help.
Packing and Shipping:
The Electronic Gyroscope Sensor is meticulously packaged in an
anti-static bag to ensure protection against electrostatic
discharge (ESD). The sensor is then securely encased in a
custom-fit, high-density foam mold, which provides superior shock
absorption during transit. This foam is placed within a durable,
branded cardboard box that shields the sensor from environmental
factors and potential damage while in transit.
The exterior of the box features clear labeling with the product
name, handling instructions, and a barcode for easy tracking. All
our packages are sealed with tamper-evident tape, offering an
additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a
trusted courier service to ensure timely and safe delivery. We
include insurance for the full value of the product, offering peace
of mind and protection for your investment. Tracking information is
provided as soon as the package is dispatched, allowing for
real-time monitoring of the shipment until it arrives at its
destination.
