Product Description:

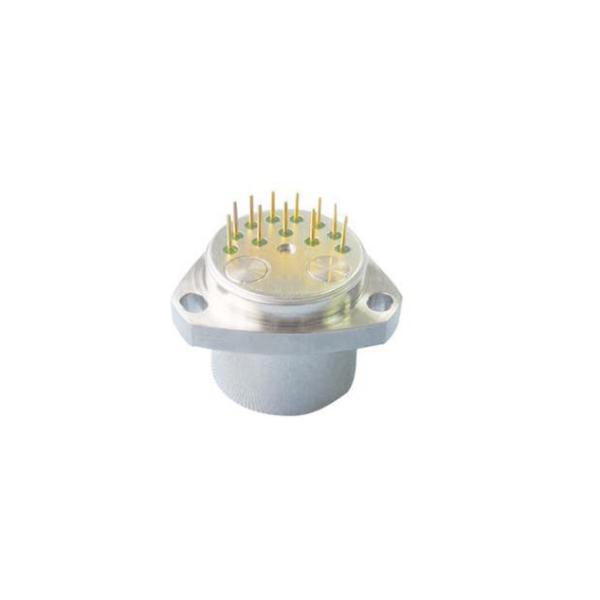

Quartz Flexible Pendulum Accelerometer: A Technological
Breakthrough The Quartz Flexible Pendulum Accelerometer, a force
feedback adaptation, showcases significant advancements over the
liquid floating pendulum accelerometer. The pivotal distinction
lies in the detection method: the quartz flexible accelerometer,
instead of floating, is elastically connected to a flexible beam
support. This unique design incorporates elastic moments, resulting
in heightened accuracy, robust resistance to disturbances, an
expansive measurement range, and a remarkable overload capacity.
Quartz flexible pendulum accelerometers are currently in widespread
use for the measurement of diverse linear accelerations, vibration
accelerations, and parameters including speed, distance, angular
velocity, and angular displacement. Notably, their successful
applications span both military and civilian sectors, encompassing
satellite microgravity measurement systems, high-precision inertial
navigation systems, rock-based drilling, oil drilling, continuous
inclinometer systems, and aerospace endeavors such as launch
vehicles, ballistic missiles, and spacecraft.
Product Feature:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new
generation weapon
Technical Parameters:
| Performance | KSQA07A | KSQA07B | | Input Range (g) | ±50 | ±20 | | Bias (mg) | ≤5 | ≤5 | | Temperature Sensitivity (μg/℃) | ≤10 | ≤20 | | One-month Composite Repeatability (1σ) (μg) | ≤10 | ≤20 | | Six-month Composite Repeatability (1σ) (μg) | ≤15 | - | | Scale Factor (mA/g) | 1.2 ~ 1.6 | 1.2 ~ 1.6 | | Temperature Sensitivity (10-6/℃) | ≤10 | ≤30 | | One-month Composite Repeatability (1σ) (10-6) | ≤10 | ≤30 | | Six-month Composite Repeatability (1σ) (10-6) | ≤30 | - | | Linearity (μg/g2) | ≤10 | ≤30 | | Threshold (μg) | Less than 1 | Less than 5 | | Resolution (μg) | Less than 1 | Less than 5 | | Input Voltage (V) | ±12 ~ ±18 | ±12 ~ ±18 | | Operating Temperature (℃) | -45 ~ +80 | -45 ~ +80 | | Size (mm) | Ø25.4×29 | Ø25.4×29 | | Weight (g) | ≤75 | ≤75 |
|
|---|
| Outline |
 |  |
| KSQA07 Configuration Drawings | KSQA07 Pin & Wiring Diagram |
|
| Environment |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
