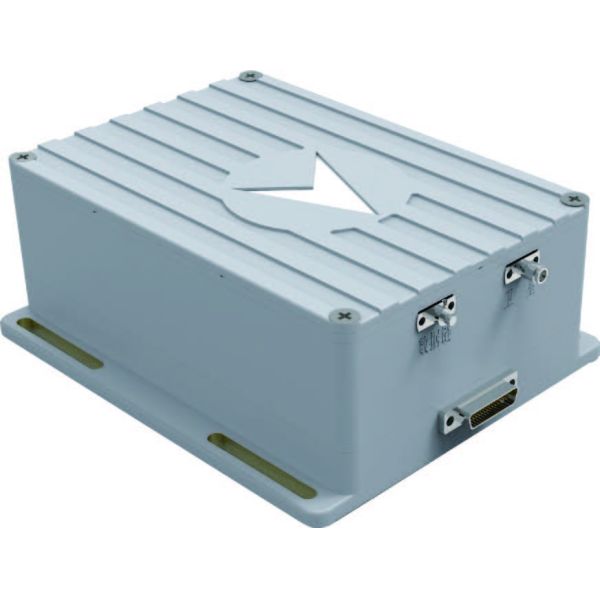

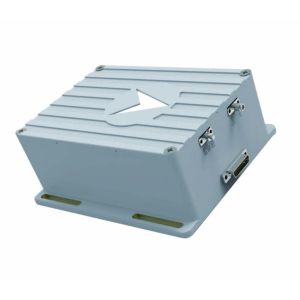

KsINS-01 communication and navigation integrated collaborative navigation system

product description:

The KsINS-01 integrated communication and guidance cooperative navigation system is based on the application background of UAV swarm formation flight. It deeply integrates satellite navigation and data links to provide high-precision spatio-temporal benchmarks for UAVs. The system has Beidou third-generation B1 and B3 frequency signal reception, inter-node networking communication and high-precision space-time synchronization functions. The spatio-temporal synchronization accuracy is better than 0.1m/1ns under satellite effective conditions, and the spatio-temporal synchronization accuracy is better than 5m/5ns under satellite rejection conditions.

Features:

● High-precision spatio-temporal synchronization between nodes based on carrier difference

● High-precision spatio-temporal synchronization between nodes under satellite rejection conditions

● In-depth integrated design of satellite navigation and data link

● Highly reliable networking and data transmission between nodes

Application fields and application modes:

Can be applied to all types of drones.

Navigation system Performance indicators :

Application environment :

Physical properties:

External Interface:
