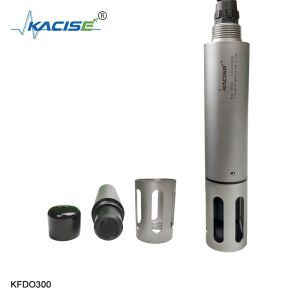

KFDO300 Online Fluorescence Dissolved Oxygen Sensor Water Quality
Sensor
Introduction
The KFDO300 online fluorescence dissolved oxygen sensor is a water
quality monitoring sensor designed for online applications,
utilizing the OSA optical water quality analysis platform. This
integrated sensor incorporates advanced oxygen sensing technology
through the fluorescence quenching method. It embraces a digital
and intelligent sensor design concept, integrating temperature
detection, and offering features like automatic temperature
compensation and digital signal conversion within the instrument.
With RS485 signal output, it facilitates easy networking and system
integration, making it suitable for a wide range of applications in
surface water, pollution sources, and various industries.
Characteristics
Integrated Design:
The sensor features an integrated design to resist electromagnetic
interference.
Built-in Temperature Sensor:
Equipped with a built-in temperature sensor for real-time
temperature compensation.
Salinity and Air Pressure Compensation:
The sensor supports compensation for salinity and air pressure.
Stainless Steel Case:
Housed in a stainless steel case, providing durability and a
waterproof rating of IP68.
Suitability for Various Working Conditions:
Designed to withstand diverse working conditions.
RS485 Signal Output:
The sensor offers RS485 signal output for data transmission.
Standard Modbus Protocol:
Adheres to the Standard Modbus protocol for seamless integration.
Easy Integration and Networking:
Facilitates easy integration into systems and networking setups.
Technical Specifications
| Water Quality Sensor Model | KFDO300 |
| Water Quality Sensor Measurement parameter | Dissolved oxygen, temperature |
| Water Quality Sensor Method of measurement | Fluorescence quenching |
| Water Quality Sensor Measurement mode | Immersion measurement |
| Water Quality Sensor Measuring range | Do: (0 ~ 20) mg/L or (0 ~ 200)% Temperature: (0 ~ 60) °C |
| Water Quality Sensor Accuracy | ± 0.3 mg/L |
| Water Quality Sensor Repeatability | ± 0.3 mg/L |
| Water Quality Sensor Resolution | 0.01 mg/L |
| Water Quality Sensor Response time | ≤60s |
| Water Quality Sensor Zero Drift (24h) | ± 0.3 mg/L |
| Water Quality Sensor Range Drift (24h) | ± 0.3 mg/L |
| Water Quality Sensor Accuracy of temperature compensation | ± 0.3 mg/L |
| Water Quality Sensor Calibration period | Six months |
| Water Quality Sensor Temperature range | (0 ~ 60) °C |
| Water Quality Sensor Protection level | IP68 |
| Water Quality Sensor MTBF | ≥1440h/Time |
| Water Quality Sensor Means of communication | RS485(Modbus RTU) , maximum baud rate 115200 bps |
