    Clamp On Ultrasonic level meter High Accuracy With GRPS Function

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : KUM2500C
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Clamp On Ultrasonic level meter High Accuracy With GRPS Function

    Clamp On Ultrasonic level meter High Accuracy With GRPS Function
    1. Production Overview
    The Clamp On Ultrasonic level meter is an advanced instrument. It stands out for its high accuracy in level measurement, ensuring precise data collection. Equipped with a GRPS function, it enables seamless remote data transmission and monitoring. This makes it extremely useful in various industries where efficient and accurate liquid level management is of utmost importance.
    2. Introduction of the product

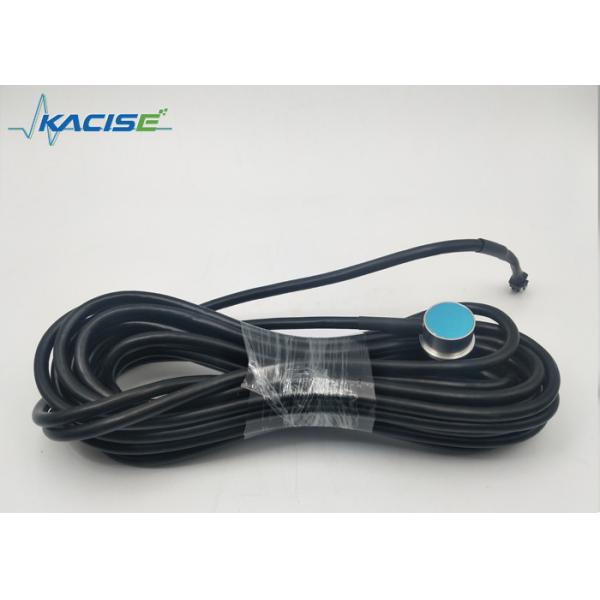

    2.1. The picture of real product is shown in the following figure
    2.2 Technical parameters
    Operating voltage9~36VDC
    Maximum power consumption0.8W/12VDC
    Work temperature-40℃~+85℃(Industry level)
    Working humidity5%~90%
    Measurement rangeDetermined according to materials and thickness of the container; for steel plate of 5mm thick, the measurement scope is 5~200cm.
    Pressure bearing scope≤0.8kg or 0.8MPa
    Liquid measurement accuracy±1%
    Equipment interfaceProvide output port of analog voltage/current, RS232 and RS485 data port.
    Communication port parametersThe default baud rate is 9600. No check bit, 8-digit data bits, 1-digit stop bit and no fluid control. The liquid level value measured by the sensor in a real-time manner is given per 10s after smoothing processing.
    Note: The baud rate and interval of data transmission can be customized.
    2.3 Product characteristics
    1. High precision: The resolution ratio of oil level height measurement of the oil level sensor is 0.1mm and the measurement accuracy is ±0.5%. High measurement accuracy can be guaranteed at high temperature and high cold external environment.
    2. Good long-term stability: The oil level sensor adopts ultrasonic wave measurement method and performs non contact measurement. It is different from the float-type, pressure type, magnetic sliding system measurement methods that adopt direct contact measurement methods at present generally so as to avoid corrosion and pollution of oil level sensor by fuel oil and maintain long-term stability.
    3. Easy installation and maintenance: It only needs to install the sensor probe at the lower part of external fuel tank. There is no need to change the existing measurement system of the fuel tank, no need to drill hole and make change on the fuel tank. At the same time, it can guarantee normal operation of former oil meter of vehicles.
    4. Environmental sound, small energy consumption. Non contact measurement makes it unnecessary to bore hole on or modify the fuel tank. No dirt and pollution will be brought to the fuel oil.
    5. Strong reliability: Still work normally at hostile environment; anti-damp, anti-acid, inflaming retarding, anti-interference and Intelligent.
    The product can be used independently by using the auxiliary display screen. It may also be used with GPS equipment by transferring the data to backstage through GPS equipment for data statistics, statement analysis and query.
    2.4 Applicable scope
    The ultrasonic oil level sensor is geared to all types of vehicles (such as logistics vehicles, taxi, buses and passenger cars, etc) to record the refueling, oil consumption of vehicles with digitalization to prevent occurrence of fuel theft, avoid resources waste, improve management efficiency and traffic safety and enhance operation management level.
    3. Product package
    3.1 Description of main equipment



    Port definition of user interface line
    Pin positionFunctionDescription
    1Positive pole of power supply9~36VDC
    2Negative pole of power supply
    3TXRS232 transmitting terminal
    4RXRS232 receiving terminal
    5BRS485 B
    6ARS485 A
    7NCReserved
    8NCReserved
    9AOUTAnalog voltage output
    10GNDReference ground
    11NCReserved
    12NCReserved

    2)Definition of LED light
    Green light on: the probe works normally
    Red light on: the probe is abnormal (the probe line is not inserted or probe drops off).
    3.2. Description of user interface
    Wire colorFunctionDescription
    RedPositive pole of power supply9~36VDC
    BlackNegative pole of power supply
    YellowTXDRS232: transmitting terminal of the device
    BlueRXDRS232 receiving terminal of the device
    BrownBPort B of RS485 interface
    PurpleAPort A of RS485 interface
    GreenAOUTAnalog voltage output
    BlackGND
