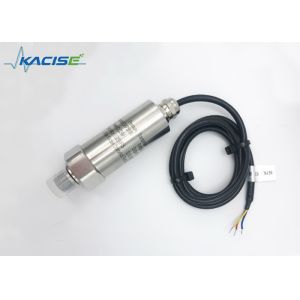

GXPS100 Universal Piezoresistive Pressure Transmitter
Feature
☆Accuracy: 0.5%F.S
☆Import high quality core
☆Multiple pressure range and output signal
☆Various connector and pressure port
☆Non-polarity 2 line current output
☆DC&AC output
☆CE certificate, intrinsically safe prevent explode
Application
☆Gas storage facility
☆Refrigerating machine
☆Hydraulic and lubrication
☆Constant pressure water supply
☆Pipeline pressure
☆Vessel pressure
☆Petrochemical
☆Industrial Process Control
Introduction
GXPS100 Series pressure transmitter is a high-volume, civil and
industrial use,
cost-effective products. Widely used in gas, liquid pressure
detection, such as water,
oil, mild corrosive liquids and gases.
The product uses 1Cr18Ni9Ti stainless steel structure, import the
internationally
famous brand of diffusion of oil-filled pressure core body,
dedicated sensor
instrumentation amplifier circuit which can facilitate to calibrate
its zero and full scale.
Electronic interface and signals definition
| Output signal |
| Two wire | 4~20mA |
| Three wire | 0~5V,0.5~4.5V, 1~5V,0~10V(dc) |
| 2 wire | 3 wire | Cable | Hirschman | Connector |
| Power | Power | Red | 1 | 1 |
| Output | Output | Blue/green | 2 | 2 |
| Power ground | Black | 3 | 3 |
Parameter
| Spec. | Value |
| Pressure range | 0~0.2MPa......60MPa 2bar…600bar 29psi…8700psi 20000MmH20…6118000mmH2O 1.97atm…592atm |
| Load pressure | 1.5 times nominal value pressure (1.5X) |
| Rupture pressure | 3 times nominal value pressure (3X) |
| Accuracy | ±0.5%F.S(PT 300 or MARS for higher accuracy are available) |
| Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S |
| Operating temperature | -40°C~120°C |
| Compensation temperature | -10°C~70°C |
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti |
| Electrical performance | 2 wire system | 3 wire system |
| Output signal | 4~20mA | 0~5V | 1~5V | 0.5~4.5V | 0~10V |
| Power supply | 10~30Vdc | 8~30Vdc | 5V(ratio) | 11~30Vdc |
| Load pressure | (U-10)/0.02(Ω) | 〉100kΩ |
| Insulation | 〉100M Ω@50V |
| Electric strength | 500V@60 second |
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
| Pressure durable | 2×106pressure circle @25°C |
| Display range | -999~1999@(PT110&PT111) |
| Contact capacity | (24V, 1A)@PT111 |
| Electrical connection | Hirsmann , air plugs, fixed cable, water proof cable |
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
| Pressure type | G, S | Response time: 10ms |
| Certificate | Intrinsically safe mode E, CE |
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable
length-Package
1.Type: PS100=universal type, PS100E=intrinsically safe mode,
PS110=PS100+indicator
2.Range: 0~0.2…60MPa, 0~2bar…600bar= the upper limitation of the
range
3.Output:: A=4~20mA, V=0~5Vdc, V05=0.5~4.5Vdc, V1=1~5Vdc,
V2=0~10Vdc
4.Power: 5Vdc, 24Vdc, 6~24Vdc, 10~30Vdc, 11~30Vdc
5.Pressure port: M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
6.Electric connection: H=DIN43650-A, GX=GX16-7, C=fixed cable
outlet, CW=waterproof joint outlet
7.Cable length: XX m=XX meter 1-150m
8.Package: Bb, Foam
e.g. GXPS100-3MPa- A-0.5-DC24-P-Foam
PS100, test range is 0-3MPa, accuracy is 0.5%, 24Vdc power supply
4-20mA output, pressure port with M20X1.5, foam packaged.
