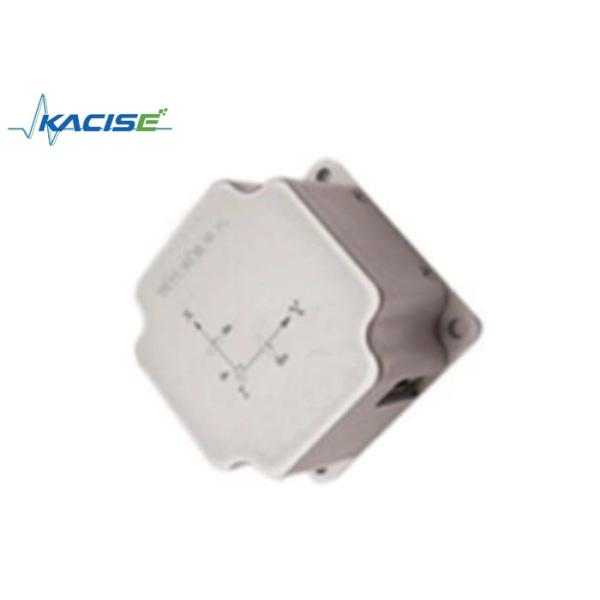

RS485/RS232 Output Inertial Measurement Unit for Navigation
Guidance System
Features
☆Digital RS485/RS232 output
☆Whole temperature range compensation
☆Nonlinear correction, Cross coupling correction
☆impact resistance, vibration performance
Application
☆ System for vehicle rollover
☆ Navigation guidance system
S Specification
| Type | K-IMU-400 |
| Electric character |
| Input voltage | 9~36 VDC |
| Input current | ≤ 100 mA |
| Output Mode | RS-422 |
| Baud Rate | 115200bps |
| Output Data Rate | 200Hz |
| Output Data format | 16-bit twos complement |
| Performance index |
| Sensor | Gyroscope | accelerometer |
| Range | ±150 °/s | ±10g |
| Bandwidth | ≥50 Hz |
| Resolution (°/s) | ≤ 0.04°/s | 0.005g |
| Nonlinear (%FS) | ≤ 0.5% Fs | ≤1% Fs |
| Bias | ±0.2°/s | 0.02g |
| Bias stability | ≤0.05°/s | ≤0.002g |
| Start-up time (ms) | ≤ 1 s |
| Environmental characteristics |
| Temperature (°C) | -40~70 |
| Storage Temperature (°C) | -40~125 |
| Resistant to shock | 2000g |
| Physical Characteristics |
| Weight (g) | 250 |
| Dimensions | 55×55×33mm |
Dimensions
Company strength
1.Through the ISO9001: 2008 quality system certification, access to
a number of patent certificates and software copyrights
2.And Xiamen University, Chinese Academy of Sciences Institute of
Acoustics, 715, Ha Engineering underwater acoustic college and many
other colleges and universities,Scientific research unit
cooperation
3.Products in the Northwest Industrial Group, Hainan Airlines Co.,
Ltd., are widely used
4.China's largest sensor, flowmeter production base
workshop
