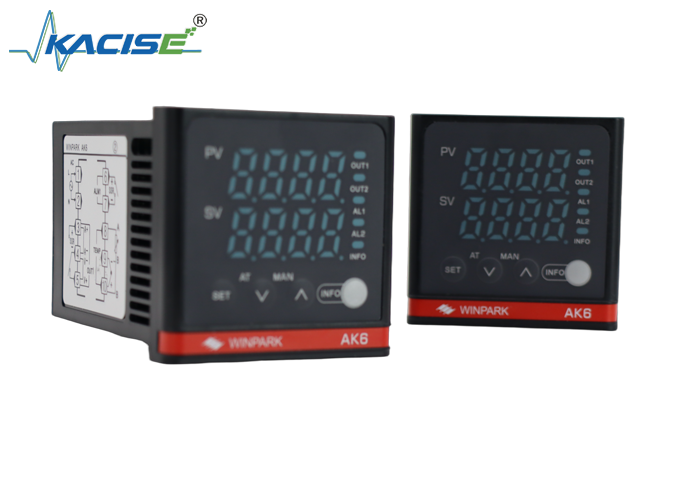

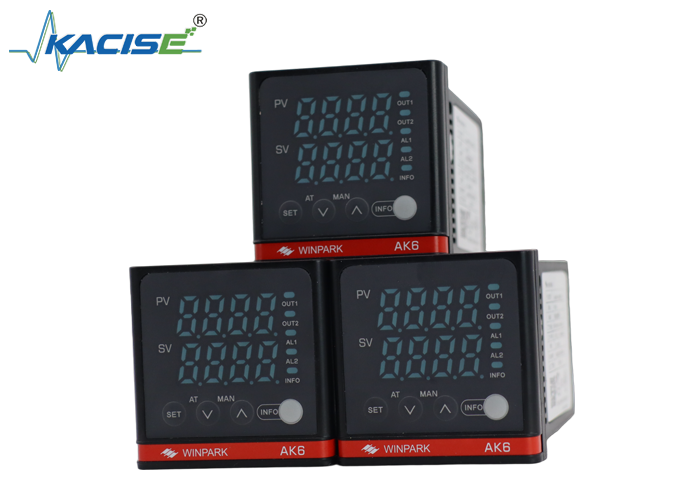

    AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : AK6
    Certification : CE
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

    1.Electrical Specifications

    Item

    Specification

    Rated Voltage

    180V–240V AC, 50Hz

    Power Consumption

    ≤5VA

    Operating Environment

    Ambient temperature: 0–50°C

    Relative humidity: 35%–85% RH (non-condensing)

    Storage Temperature

    -25°C–65°C (no condensation or frost)

    Resolution

    1°C, 0.1°C (optional)

    Wiring Method

    Terminal connection

    Measurement Accuracy

    ±0.5%FS

    Data Retention

    Non-volatile memory

    Installation Environment

    Indoor installation, free from corrosive gases

    Relay Output

    Relay control output: AC220V/DC30V, 3A

    Analog Output

    (Optional) DC12V: 0–5V/1–5V; DC0–5V/1–5V; Output current: ≤30mA; Load resistance ≥1kΩ

    2.Product Model Selection

    Please refer to the following code description to confirm whether the delivered product model matches the selected one.

    AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

    ① Front Size A: 48×48 B: 48×96 C: 96×48 D: 72×72 E: 96×96

    ② Input Signal K, E, J, N, Wre3–25, Wre5–26, Pt100, Cu50

    ③ Power Supply A: AC power supply D: DC power supply S: Battery test

    ④ Output Function 1: Relay output 2: Analog output 3: Logic level output

    ⑤ Control Mode 0: Single setpoint control (heating)

    1: Dual setpoint control (heating/cooling)

    2: Time proportional control

    3: On/off control

    4: PID control

    ⑥ Additional Functions 0: None 1: Communication function (RS485) 2: Timer function 3: Programmable segment control function

    ⑦ Custom Code Custom product, defined based on specific order requirements

    3.UAppearance and Mounting Dimensions

    AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

    Unit: mm

    Model

    Panel Size (mm)

    Overall Dimensions (L × W × H, mm)

    Mounting Hole Size (mm)

    AK6-A

    48 × 48

    76 × 45 × 45

    46 × 46

    AK6-B

    48 × 96

    72 × 44 × 90

    45 × 91

    AK6-D

    72 × 72

    72 × 66 × 66

    67 × 67

    Operation Panel Function Description

    AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power
