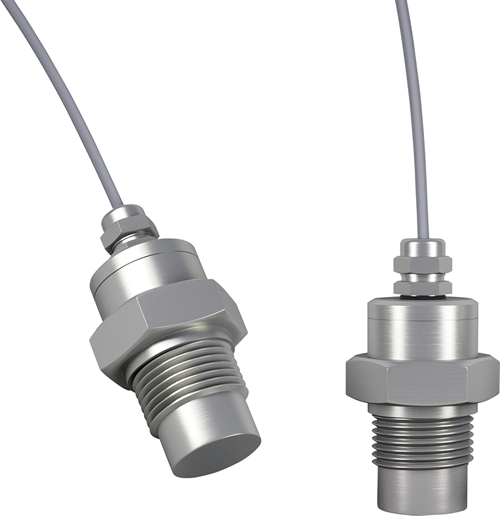

    KWD510 M26 Hydrophone with Analog Output High Sensitivity and Wide Temperature Range for Ultrasonic Transducer Applications

    Introduction

    Able to maintain high accuracy and high sensitivity in environments with large changes in temperature and pressure, this hydrophone provides two types of preamplifiers and is widely used in noise monitoring caused by liquid flow and fluctuations. Threaded connection for easy installation.

    Technical Specifications

    Product name

    M26 Hydrophone

    Power supply

    6Vdc~13Vdc

    Power consumption

    150 mW

    Output mode

    Analog output (sampled to signal amplified 10 times and 100 times)

    Ambient temperature

    -45℃~85℃

    Protection level

    IP68

    Sensor cable

    4-core shielded cable

    Cable length

    2 meters

    Application Fields
