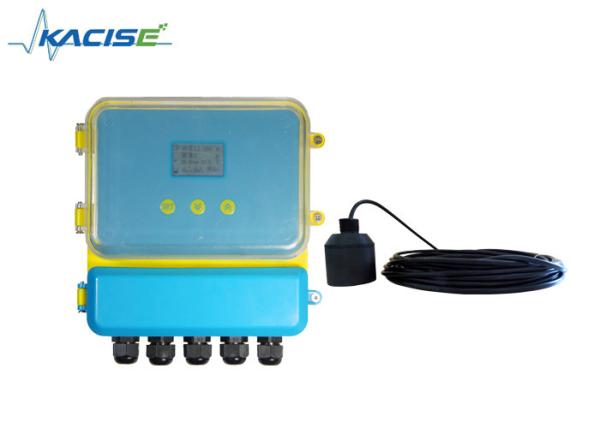

    IP66/IP68 Protected Two-wire Split Water Level Sensor with RS485/RS232 Output and Highly Accurate Resolution

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : KUM Series
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    IP66/IP68 Protected Two-wire Split Water Level Sensor with RS485/RS232 Output and Highly Accurate Resolution

    Product Description

    The Two-wire Split Water Level Sensor with RS485/RS232 output is a sophisticated and reliable device. Its unique split design gives you the freedom to position the sensing unit precisely where needed and install the control section in a more convenient or safeguarded location. The two-wire setup streamlines installation, cutting down on costs and complexity. It delivers highly accurate water level readings, essential for applications like industrial water management and flood control. The RS485/RS232 output options offer great versatility. RS485 enables long-distance and multi-device communication for large-scale setups, while RS232 allows easy connection to PCs for quick data analysis. It's built to endure diverse conditions, ensuring consistent performance.

    Parameter
    ParameterCompact typeSplit type
    Range5m,10m,15m,20m,30m,40m,50m,60m5m,10m,15m,20m,30m,40m,50m,60m
    Accuracy0.5%~1%
    Resolution3mm or 0.1%(The larger one is effective)
    DisplayEnglish LCDEnglish LCD
    Analog Output

    4wire 4~20mA/510Ω load

    2wire 4~20mA/250Ω load

    4~20mA/510Ω load
    Relay Output2 way AC 250V/5A or DC 30V/5A, programmable(optional)2 or 4 way AC 250V/ (NO:10A,NC:6A) or DC 24V/ 10A, programmable (optional)
    Power Supply

    24VDC (default)

    220V AC+15%@50Hz

    12VDC

    Battery

    24VDC 120mA (default)

    220V AC+15%@50Hz

    12VDC

    Battery

    Environment Temperature

    Display instrument-20~+60℃,

    transducer-20~+80℃

    Display instrument -20~+60℃,

    transducer-20~+80℃

    CommunicationRS485,RS232 (optional)
    ProtocolModbus-RTU
    ProtectionDisplay instrument IP66,transducer IP68
    Transducer Cableno

    Default 10m

    Max. 100m can be ordered (when without electromagnetic interference)

    Transducer InstallationAccording to range and transducerAccording to range and transducer
    Power Consumption

    The specific power of split-type is as follows:

    With only mA output, it is 1.5W/24V (standard);

    With only RS485 output, it is 0.9W/24V (optional);

    With both RS485 and mA output, it is 1.6W/24V (optional);

    Add two relays, the power is increased by 0.8W/24V (optional);

    The power of 220VAC split-type is 5W/220VAC.


    The specific power of compact four-wire instrument is as follows:

    With only mA output, it is 1W/24V (standard);

    With only RS485 output, it is 0.6W/24V (optional);

    With both RS485 and mA output, it is 1.1W/24V (optional);

    Add two relays, the power is increased by 1W/24V (optional);

    The power of 220VAC compact four-wire instrument is 5W/220VAC.


    24V compact two-wire instrument output power and instrument output current value are related: (4mA/0.096W-20mA/0.48W)

    nstallation dimensions:
    KUM-A/KUM-C Compact enhanced ultrasonic level sensor:


    KUM-B Split type standard ultrasonic level sensor:


    KUM-E compact explosion-proof ultrasonic level sensor:


    Apply
    Production Flow
    Product packaging
    IP66/IP68 Protected Two-wire Split Water Level Sensor with RS485/RS232 Output and Highly Accurate Resolution
    Company Profile
    IP66/IP68 Protected Two-wire Split Water Level Sensor with RS485/RS232 Output and Highly Accurate Resolution
    Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
    We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
    Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
