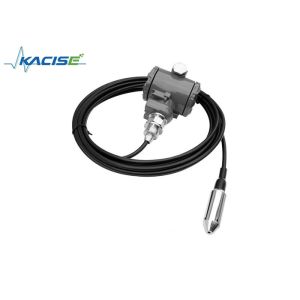

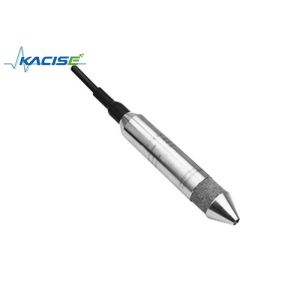

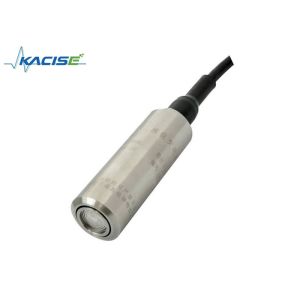

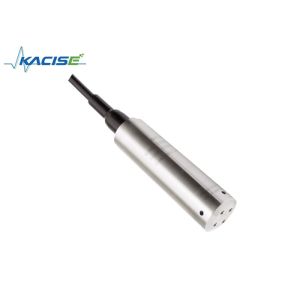

Customized Intelligent Pressure Transmitter High Precision With Vented Cable

Introduction

GXPS400 series level transmitter is a special structure and use of products, high precision, small size andgood stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof certificates. Customized solutions for various fluids can be supplied.

1. Diffused-Silicon oil filled core
2. All kinds of structure to satisfy different users
3. Multiple pressure range and signal output
4. Non-polar 2 wire system current output
5. Easy to use with submersible measuring
6. Can be used in lightning protection products
7. Reinforcing rib for liquid cable available
8. Intrinsically safe explosion proof, Isolation explosion proof, CE

Application

1. Sewage treatment
2. Cloudy level measuring
3. Hydrologic measurement for river, lake, sea
4. Circulating liquid consumption monitoring
5. Deep well level measuring
6. Fluid reservoir level measuring
7. Water-saving irrigation
8. Diversion project

Electronic interface and signals definition

Parameter

Ordering information

GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package

1. Type: PS400=universal type, PS400E=intrinsically safe type, PS400D=isolation explosion proof ,PS400L= lighting protection, PS400A=thread mounted, PS400B=Submersible & thread type, PS400-TH=Sediment prevention, PS430=minor diameter, PS400-1=antifouling, PS400-2=High density, PS470=economical, RSV=Reserved
2. Range: 1m…500m= the upper limitation of the range
3. Output: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
5. Power: 24VDC, 11~30Vdc, or customized
6. Structure: T= submersible type, G=F=split, Ht=customized
7. Cable length: XXm=XX meter 1-150m
8. Package: Bb, Foam

e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam

PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
