The YSZK type pressure sensor is an advanced device designed to measure pressure with high accuracy and reliability. It incorporates a diffuse silicon pressure transducer and an integrated signal transformation circuit. This sensor is known for its exceptional measurement precision, dependable stability, compact size, and ease of installation.
The diffuse silicon pressure transducer is at the core of the YSZK sensor, providing accurate pressure readings across a range of mediums. Whether dealing with liquids, gases, or other types of fluids, this sensor is versatile and suitable for various applications. It is commonly used in maritime environments and industrial equipment, making it an essential tool for monitoring and controlling pressure in ships and other industrial machinery.
The sensor's signal transformation circuit ensures that the measured pressure data is converted into a usable electrical signal, which can be easily integrated into control systems or monitoring equipment. Its small volume allows for installation in tight spaces, and its stable performance guarantees reliable pressure measurement over time.
Overall, the YSZK type pressure sensor is a high-precision, robust solution for pressure measurement needs, offering convenience and reliability in demanding environments.
Description:

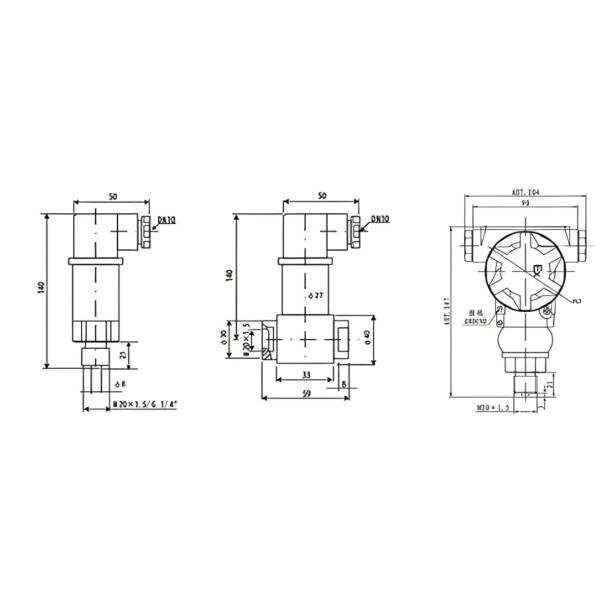

Dimensions
Wiring
Technical Specifications
| Power voltage | DC24V |
| Measuring accuracy | ±0.5% FS |
| Working temperature | -20~60 centigrade |
| Output signal | DC 4~20mA (two wires HART) |
| Protection | IP66 |
| Over load | 2.5 times of full range |
| Press connection size | M20x1.5, G 1/4" ,G1/2" |
| Explosion proof | Ex ia II CT4~T6 Ex d II CT4~T6 |
Packing and Shipping:
Product Packaging:
The Precision Digital Pressure Gauge comes in a sturdy cardboard box with foam inserts to protect the gauge during shipping. The box is labeled with the product name and specifications for easy identification
Shipping:
The product will be shipped via standard ground shipping within the United States. Shipping times may vary depending on the destination, but typically take 5-12 business days. International shipping is available upon request, but additional fees may apply. The product will be carefully packaged and shipped within 5-7 business days of receiving the order.
