Product Description:
Precision, velocity and balance are key to any moving object. When
it comes to complex vehicles, like airplanes, autonomous vehicles,
ships, spacecraft, submarines and even unmanned aerial vehicles
(UAVs), the need for an accurate system that helps maintain and
control perfect movement is essential. With the help of inertial
navigation systems, moving vehicles can accomplish their tasks
safely and precisely without using GPS.

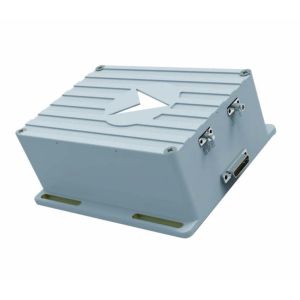

The KsINS-01 integrated communication and guidance cooperative
navigation system has been developed with a focus on UAV swarm
formation flight. It seamlessly combines satellite navigation and
data links to offer precise spatio-temporal references for UAVs.
The system incorporates Beidou third-generation B1 and B3 frequency
signal reception, enabling inter-node networking communication and
high-precision space-time synchronization capabilities. Achieving a
spatio-temporal synchronization accuracy of better than 0.1m/1ns
under satellite effective conditions, and 5m/5ns under satellite
rejection conditions.
Features:
● High-precision spatio-temporal synchronization between nodes
based on carrier difference
● High-precision spatio-temporal synchronization between nodes
under satellite rejection conditions
● In-depth integrated design of satellite navigation and data link
● Highly reliable networking and data transmission between nodes
Technical Parameters:
Performance indicators :
| Satellite positioning accuracy (2σ) | Level: 6m, elevation: 8m |
| Data link working frequency band | 3.4GHz~3.6GHz |
| Frequency hopping rate | 80000 hops/s |
| Communication distance | 100km |
| Communication rate | 200kbps |
| Number of supported nodes | 64 |
Spatiotemporal synchronization accuracy when satellites are
available (RMS) | 0.1m/1ns |
Spatiotemporal synchronization accuracy in case of satellite
rejection (RMS) | 5m/5ns |
Application environment :
| Working/storage temperature(℃) | -55℃ ~+70℃ |
| Dynamic Range | Speed: -2000m/s ~ 2000m/s; Acceleration: -30g ~ 30g; acceleration: -5g/s ~ 5g/s. |
| Mechanical properties | Endurance shock environment: half sine wave 20g, 11ms Endurance vibration environment: typical drone vibration
environment |
Physical properties:
| Dimensions | 160mm x 150mm x 56mm |
| Installation dimensions | 160mm x 150mm |
| weight | Host ≤ 12.5kg |
External Interface:
| Power Requirement | 18V~36V DC, power consumption ≤ 30W, allowed power interruption is
no more than 5ms |
| Input/output interface | 2 RS-422, 1 RS-232, 1 100M Ethernet |
|
|
| Data output frequency | 10Hz (typical) |
Support and Services:
- We offer a variety of resources to help you get the most out of
your electronic gyroscope sensor.
- We provide 24/7 customer support to answer any questions or
concerns you might have.
- Our team of engineers is available to provide technical advice and
troubleshooting assistance.
- We provide a warranty for all of our products to ensure that you
are satisfied with your purchase.
