Product Description:

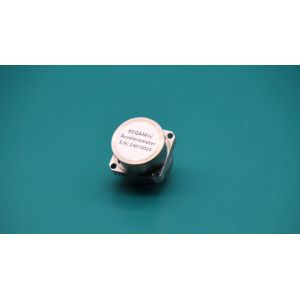

The Quartz flexible accelerometer is a precision instrument
consisting of a flexible support made from quartz glass and an
advanced servo circuit based on the principle of inertia. When
subjected to acceleration, the output of the accelerometer is
precisely proportional to the input acceleration.
Our accelerometer is designed with a current output form of high
output impedance, allowing users to choose the sampling resistance
based on their requirements without affecting the stability of the
system.
Currently, we offer a series of products in our quartz flexible
accelerometer, with types ranging from the high-precision μg KSQA07
accelerometer used for satellite microgravity measurement, to the
low-cost and anti-harsh environment KSQA13 accelerometer, with
dozens of different types available.
Our accelerometers are widely used in a number of fields, including
aerospace, aviation, navigation, ship, vehicle, petroleum,
geotechnical engineering, and others. These accelerometers provide
signals to aid navigation, guidance, control, leveling, monitoring,
and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter | KSQAMini | KSQAMini185 |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±20g | ±20g |
| Bias | ≤20mg | ≤30mg |
| Temperature Sensitivity | ≤150μg/°C | ≤150μg/°C |
| Three-hour Stability(1σ) | ≤100μg | ≤200μg |
| Scale Factor | 2.2 ~ 3.5mA/g | 1.5 ~ 3.5mA/g |
| Temperature Sensitivity | ≤200ppm/°C | ≤300ppm/°C |
| Three-hour Stability(1σ) | ≤100ppm | ≤200ppm |
| Size | Ø18.8×21mm | Ø18.8×21mm |
| Weight | ≤25g | ≤25g |
| Environment |
| Operating Temperature | -45°C~+125°C | -45°C~+185°C |
| Storage temperature | -55°C～+130°C | -55°C～+190°C |
| Shock | 1000g |
| Vibration Peak Sine | 20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services
include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box
with cushioning material to prevent damage during transit. The box
will also be labeled with the product name and any necessary
handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless
expedited shipping is requested and paid for by the customer.
Shipping costs will be calculated based on the destination and
weight of the package. Customers will receive a tracking number
once the package has been shipped.
