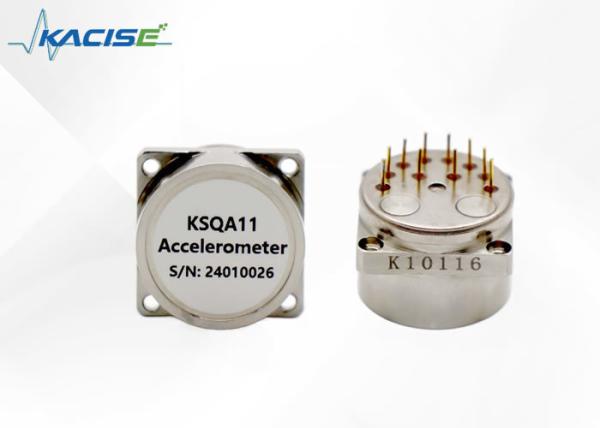

Product Description:
The Quartz flexible accelerometer is a precision instrument that is
made up of quartz glass flexible support and an advanced servo
circuit based on the principal of inertia. Whenever the carrier
experiences acceleration, the output of the accelerometer
accurately reflects the input acceleration.
Our accelerometer has a current output form of high output
impedance. Users have the freedom to choose the sampling resistance
based on their needs without affecting the stability of the system.
Currently, our quartz flexible accelerometer has become a series of
products, with many different types available. These range from the
high-precision μg KSQA07 accelerometer used in satellite
microgravity measurement to the low-cost, anti-harsh environment
KSQA13 accelerometer. There are as many as dozens of these
different types, and they are widely used in aerospace, aviation,
navigation, ships, vehicles, petroleum, geotechnical engineering,
and other fields.
Quartz flexible accelerometers are highly useful instruments that
provide signals for navigation, guidance, control, leveling,
monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
Technical Parameters:
| Parameter | KSQA11 |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±30g |
| Bias | ≤8mg |
| Temperature Sensitivity | ≤40μg/°C |
| One-month Composite Repeatability (1σ) | ≤50μg |
| Scale Factor | 1.0 ~ 1.6mA/g |
| Temperature Sensitivity | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤80ppm |
| Linearity | ≤40μg/g2 |
| Size | Ø25×25mm |
| Weight | ≤50g |
| Environment |
| Operating Temperature | -45°C~+100°C |
| Storage temperature | -55°C～+110°C |
| Shock | 500g |
| Vibration Peak Sine | 25g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
