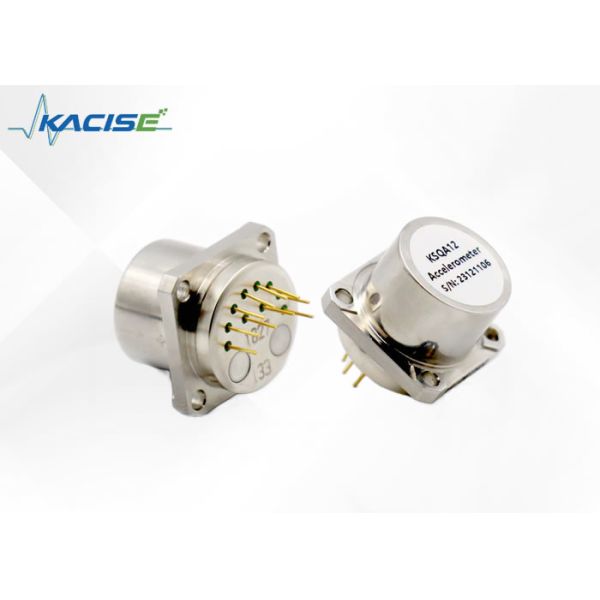

Product Description:
The Quartz Flexible Accelerometer is a precision instrument that is
made up of quartz glass flexible support and an advanced servo
circuit based on the principle of inertia. When the device
experiences acceleration, the output of the accelerometer is
proportional to the input acceleration with high accuracy.
Our accelerometer has a current output form of high output
impedance. Users have the option to choose the sampling resistance
based on their requirements, without affecting the stability of the
system. We are proud to offer a range of Quartz Flexible
Accelerometers, starting from the high-precision µg KSQA07
accelerometer for satellite microgravity measurement to the
low-cost, anti-harsh environment KSQA13 accelerometer, among
others.
Our accelerometers find use in various fields such as Aerospace,
Aviation, Navigation, Ship, Vehicle, Petroleum, Geotechnical
Engineering, and many others. These instruments provide signals for
navigation, guidance, control, leveling, monitoring, and other
systems with high precision.
Features:
- Excellent index repeatability
- Analog output
- Small size and light weight
- Wide load resistance range
- Triangle precision mounting flanges
- Application in unmanned aircraft and petroleum pipeline
- Two models are available
Technical Parameters:
| Parameter | KSQA12A | KSQA12B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±80g | ±30g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤40μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤40μg | ≤80μg |
| Scale Factor | 0.6 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤60ppm/°C | ≤60ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤80ppm |
| Linearity | ≤50μg/g2 | ≤50μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø18.2×23.6mm | Ø18.2×23.6mm |
| Weight | ≤35g | ≤35g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
- Inertial monitoring system
- Inertial navigation system
- Flight control system
- Vibration monitoring
- Oil drilling platforms and geological exploration
- Inertial measurement unit
- Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Trouble assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy
cardboard box with ample protective material to prevent damage
during shipping. The product will be securely sealed to ensure its
safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable
courier service that offers tracking information to the customer.
The shipping cost will be calculated based on the destination and
weight of the package. The estimated delivery time will be provided
to the customer at the time of purchase.
