Product Description:

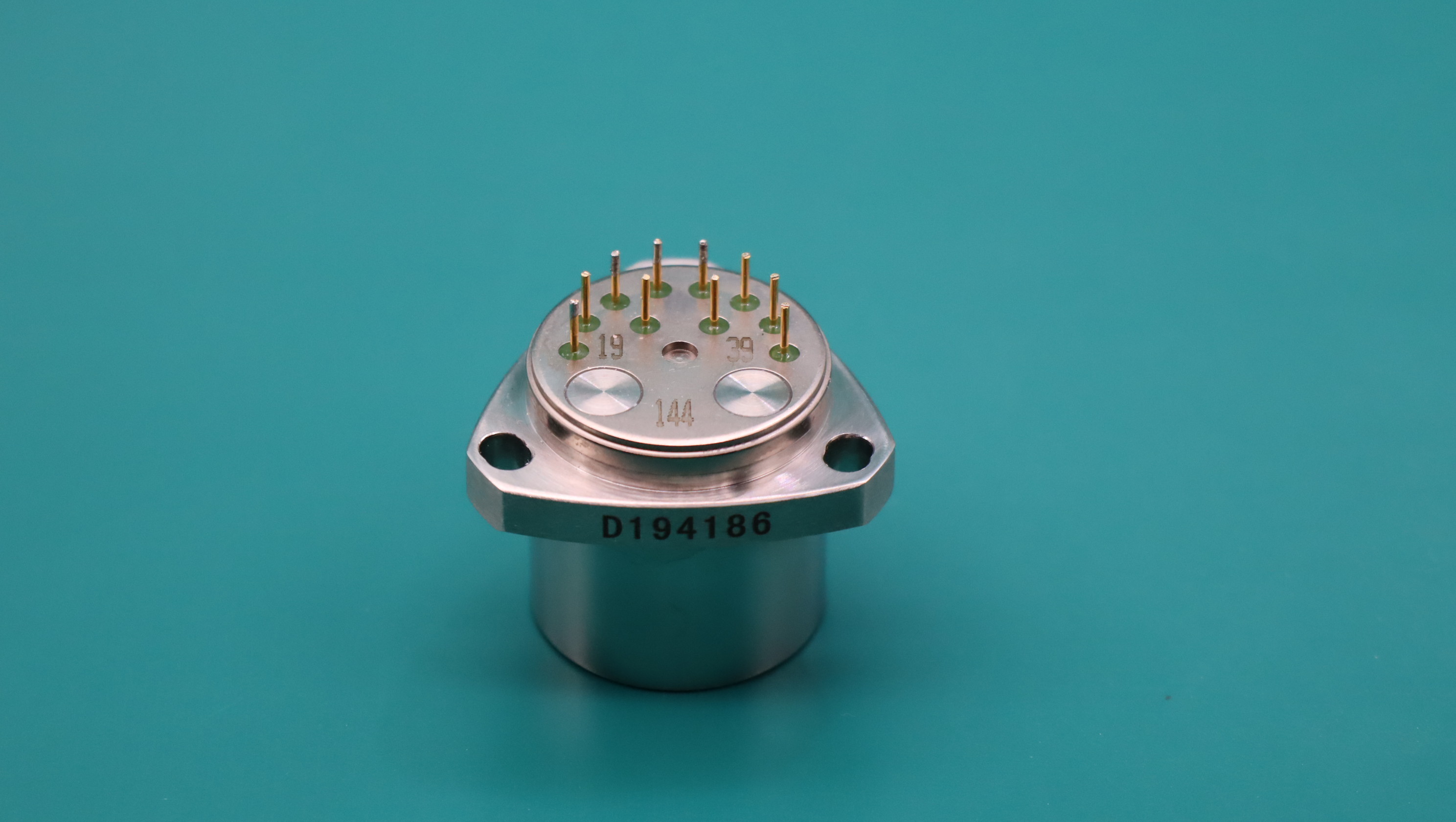

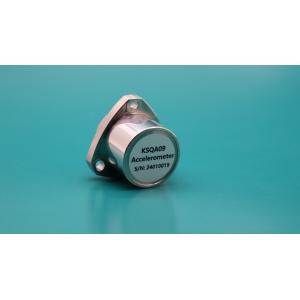

The Quartz Flexible Accelerometer is a high-precision instrument
that consists of a quartz glass flexible support and an advanced
servo circuit that operates on the principal of inertia. When the
carrier is subjected to acceleration, the output of the
accelerometer is proportionally precise to the input acceleration.
Our accelerometer has a current output form of high output
impedance, and users can choose the sampling resistance based on
their requirements, without affecting the stability of the system.
At present, we have developed a series of products which includes
dozens of different types of quartz flexible accelerometers,
ranging from the high-precision μg KSQA07 accelerometer for
satellite microgravity measurement to the low-cost, anti-harsh
environment KSQA13 accelerometer. These accelerometers are
extensively used in aerospace, aviation, navigation, shipbuilding,
vehicle manufacturing, petroleum, and geotechnical engineering
industries and provide signals for navigation, guidance, control,
leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new
generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA09A | KSQA09B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±80g | ±40g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤60μg |
| Scale Factor | 0.9 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤50ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤60ppm |
| Linearity | ≤40μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤80g | ≤80g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
