Product Description:

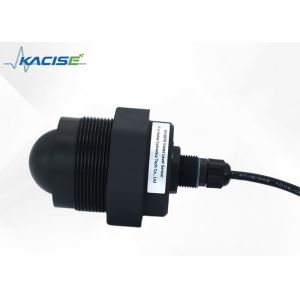

The KWL801B-RS485 radar level sensor adheres to the standard
specifications laid out in the national standard DB50/T 826-2017
for level meters. Its principal component is engineered with a
fully sealed IP68 waterproofing, ensuring reliability in harsh
environments.
The product offers a maximum measurement range of 40 meters,
leaving a minimal blind spot of less than 6 centimeters. Thanks to
its higher frequency and wider bandwidth, the radar level sensor is
capable of attaining excellent accuracy in level measurements.
The KWL801B-RS485 radar level sensor comes equipped with a fixed
bracket made for easy installation. Its durable design will
withstand extreme weather conditions.
KWL801B-RS485 Radar Level Sensor
- Conforms to national standard DB50/T 826-2017 for level meters
- Fully Sealed IP68 Waterproofing for reliability
- Maximum 40 meters measurement range and < 6cm minimal blind spot
- Higher frequency and wider bandwidth for superior accuracy
- Fixed bracket for easy installation
Technical Specifications:
| Model | KWL801B-RS485 |
| Frequency of measurement | 80GHz |
| Communication | RS485 |
| Frequency of acquisition | ≥200ms/ configurable |
| Current of operation | 12V/14mA |
| Distance measurement accuracy | ±2mm |
| Communication protocol | Modbus/ Text protocol |
| Antenna beam width | ±2.75° |
| Supply voltage | 9~24V |
| Range of measurement | 0.2~40m 0.18~30m 0.1~15/20m 0.06~3/5/10m |
| RF pulse current | 100mA/20ms |
| Working humidity | 0~95% |
| Type of thread | G thread/ customized |
| Working temperature | -40~75℃ |
| Grade of water resistance | IP68 |
| Net weight | 0.6kgs |
Wiring Instructions
| Red line | VCC (9~24V power supply) |
| Black line | GND |
| Yellow line | 485-A |
| Green line | 485-B |
Dimension:
Installation:
(1) Ensure that the sensor is perpendicular to the medium surface.
(2) Avoid the transmitting beam from irradiating interference
objects and generating false echoes.
See the following for typical working conditions:
Applications:
Radar level sensors are instruments that are used to measure the
level of various mediums in tanks and containers.
These sensors operate on the principle of time domain reflection,
which is often shortened to TDR. The basic operating principle of
the TDR is that an electromagnetic pulse is sent along a cable or
probe at the speed of light.
When the electromagnetic pulse hits the surface of the medium being
measured, a portion of it is reflected, creating an echo that
returns to the pulse transmitter along the same path. The time it
takes for the pulse to travel back to the transmitter is
proportional to the distance between the transmitter and the
surface of the measured medium.
The height or level of the measured medium can then be easily
calculated utilizing this principle. By knowing the speed of light
and the time it takes for the pulse to travel back, the radar level
sensor can accurately measure the surface level of the medium being
measured.
Support and Services:
Our Radar Level Transmitter product is backed by comprehensive
technical support and services to ensure optimal performance and
reliability. Our team of experts is available to assist with
installation, configuration, troubleshooting, and maintenance of
the product. Additionally, we offer training services to ensure
that users are equipped with the knowledge and skills necessary to
operate the product effectively. Our commitment to customer
satisfaction means that we are always ready to assist with any
issues or concerns that may arise.
Packing and Shipping:
Product Packaging:
- The Radar Level Transmitter will be packed in a sturdy cardboard
box.
- The product will be secured with foam padding to prevent any damage
during transit.
- All necessary manuals, cables, and accessories will be included in
the package.
Shipping:
- We offer free shipping to any location within the United States.
- For international orders, shipping costs will be calculated based
on the destination and package weight.
- All orders will be shipped within 1-2 business days after payment
is received.
- A tracking number will be provided to the customer once the product
has been shipped.
