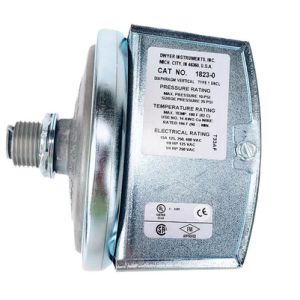

Dwyer 1823-10 Low Differential Pressure Switch Manual

Product Introduction

The Dwyer 1823-10 Low Differential Pressure Switch is a compact, high-performance device designed for monitoring and controlling low differential pressure in industrial applications. With a 2% repeatability, it delivers reliable performance for most non-critical pressure control scenarios, featuring an operating range of 2.0 to 10" w.c. (water column). Its user-friendly design simplifies installation, adjustment, and maintenance, making it suitable for process applications and mechanical equipment control.

Features

Compact Design: Space-saving construction allows easy integration into tight industrial environments, ideal for applications with limited installation space.​

High Repeatability: 2% repeatability ensures consistent performance, reducing false triggers and ensuring reliable pressure control.​

Easy Adjustment: Setpoint adjustment is located inside the mounting stud, enabling access from the opposite side of a wall or panel after installation. This design simplifies on-site modifications without dismounting the switch.​

Versatile Mounting: Compatible with both panel and wall mounting, offering flexibility to suit different installation scenarios.

Key Specifications​

Model: 1823-10​

Type: Low Differential Pressure Switch​

Operating Range: 2.0 to 10" w.c.​

Repeatability: ±2% of setpoint​

Mounting Options: Panel or wall mounting​

Adjustment Access: Setpoint adjustment via a mechanism inside the mounting stud, accessible from the opposite side of the wall/panel after installation​

Application Compatibility: Process control, mechanical equipment pressure monitoring
