UNI-T UT705 Process Signal Calibrator & Current Loop Signal Generator

Ask Lasest Price
Brand Name :	UNI-T
Model Number :	UT705
Certification :	CE
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :	1000 Piece/Pieces per Week negotiable
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

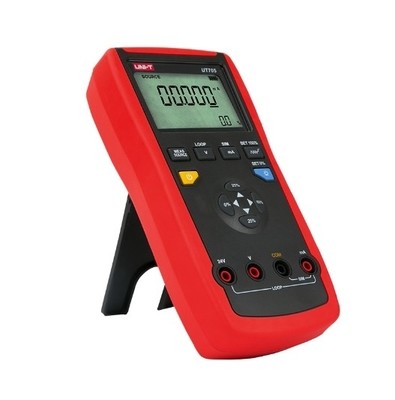

UNI-T UT705 Process Signal Calibrator & Current Loop Signal Generator

UNI-T UT705 Process Signal Calibrator & Current Loop Signal Generator

Product Introduction

The UNI-T UT705 is a high-performance handheld calibration instrument designed for precise process signal generation and loop maintenance. With a compact design (96×193×47mm) and lightweight build (410g), it offers field-friendly operation for technicians. Boasting a high accuracy of 0.02% in DC current measurements and outputs, the UT705 supports comprehensive calibration of transmitters, sensors, and control systems, making it an essential tool for industrial automation and process control applications.

UNI-T UT705 Process Signal Calibrator & Current Loop Signal Generator

Product Features

Precision Signal Generation & Measurement:

DC Voltage: 0–30 V with accuracy ±(0.02% + 2 digits), ideal for voltage-based sensor calibration.

DC Current: 0–24.000 mA with accuracy ±(0.02% + 2 digits), supporting standard 4–20 mA loop systems.

Loop Calibration Capabilities:

Simulates transmitter outputs for loop testing, the troubleshooting of control systems, and verifying signal integrity.

Automatic Functionality for Efficiency:

Stepping & Ramp Modes: Enables automated signal adjustment for linearity checks (e.g., 25% step increments).

Storage Function: Saves frequently used settings for quick recall during repetitive calibrations.

Portable & Durable Design:

Lightweight (410g) with a rugged housing, suitable for field use in industrial environments.

Versatile Application:

Supports maintenance of transmitters, controllers, recorders, and other process instrumentation.

Technical Specifications

DC voltage range	0to30 V (±(0.02 + 2))
Weight	410 g
DC current range	0to24.000 mA (±(0.02 + 2))
Dimensions	96×193×47mm
