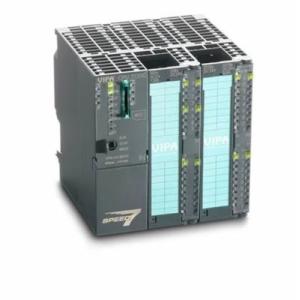

VIPA 313-5BF23 Industrial PLC Controller with SPEED7 Technology

Product Introduction

The VIPA 313-5BF23 is a high-performance programmable logic controller (PLC) featuring SPEED7 technology for rapid processing and reliable industrial automation. Equipped with 24 digital inputs, 16 digital outputs, 5 analog inputs, and 2 analog outputs, this PLC offers versatile connectivity for the control of complex systems. It includes an integrated Pt100 analog input for temperature sensing, 3 counters, and 3 PWM channels for precise motion control. With a work memory range of 256 to 1,024 KB, the controller supports demanding applications, while its dual RS485 interfaces (compatible with MPI, Modbus, USS, and more) and RJ45 Ethernet port enable seamless communication with peripheral devices. The SD/MMC card slot with locking mechanism ensures secure program storage, and up to 8 modules can be stacked for system expansion. Programmable via WinPLC7, SIMATIC Manager, and TIA Portal, the PLC comes with a 392-1AM00 front connector for easy wiring.

Key Features

High-Speed Processing

SPEED7 technology ensures fast scan times for real-time control in dynamic industrial environments.

Diverse I/O Configuration

24 digital inputs (24V DC) and 16 digital outputs (relay or transistor) for switching applications.

5 analog inputs (voltage/current) and 2 analog outputs (0-10V/4-20mA) for precision measurement.

Integrated Pt100 input for direct temperature sensor connection.

Advanced Control Functions

3 high-speed counters (up to 100kHz) for encoder or pulse counting.

3 PWM channels for stepper motor or speed control applications.

Flexible Communication

RJ45 Ethernet port for PG/OP programming and industrial network integration.

2x RS485 ports supporting protocols: MPI, Modbus RTU, USS (drive control), 3964(R), and ASCII.

Expandable & Secure Design

Stackable up to 8 modules for scalable I/O expansion.

Locking SD/MMC card slot for backup and transfer of programs/data.

Programming Compatibility

Supports industry-standard software: WinPLC7, SIMATIC Manager, and TIA Portal for easy integration.
