KAW110 Digital Differential Air Pressure Sensor Widely Applied in
Industrial and Construction Fields
Product Introduction

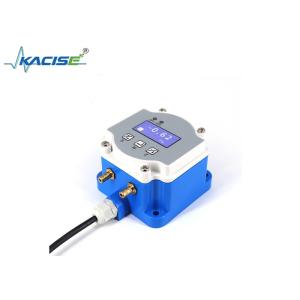

The KAW110 Digital Differential Air Pressure Sensor, featuring an
aluminum housing and stress isolation technology, has an integrated
and compact structure design. Equipped with intelligent
compensation technology, it is highly suitable for measuring wind
pressure, wind speed, and flow.
In the industrial field, it plays a crucial role in various
applications. For example, in power plants, it accurately measures
the primary and secondary air pressure of boilers. In mines, it
monitors the ventilation system. In the construction field, it is
used for indoor ventilation monitoring, measuring the pressure of
fans and air ducts. It also contributes to the wind pressure
testing in subways and environmental projects.
This sensor is applicable to media such as gas and steam, and can
measure gauge pressure and differential pressure. The pressure
range includes options like -0.25-0.25kPa, -0.5-0.5kPa, -1-1kPa,
-2-2kPa, -7-7kPa, and -100-100kPa. With an accuracy of ±0.1%FS and
a stability of 0.8%F.S. per year, it ensures reliable measurement
results. It can withstand a maximum overload of 250% of the sensor
range. The output signals are diverse, including 2-Wire 4-20mA,
0-10V, RS485, and 2xPNP. The electrical connections can be made via
terminals or M12 connectors, and it is powered by a 12-32V DC power
supply. The compensation temperature range is 0-60℃.
Features
- Compact and Durable Design: The aluminum housing and stress
isolation technology provide a compact and sturdy structure.
- Intelligent Compensation: The intelligent compensation technology
ensures accurate measurement of wind pressure, wind speed, and
flow.
- Wide Pressure Range: Covers a variety of pressure ranges to meet
different application requirements.
- High Accuracy: Achieves an accuracy of ±0.1%FS for reliable
pressure measurement.
- Good Stability: Maintains a stability of 0.8%F.S. per year for
consistent performance.
- Strong Overload Capacity: Can handle a maximum overload of 250% of
the sensor range.
- Diverse Output Signals: Offers multiple output signal options for
easy integration with different systems.
- Flexible Electrical Connections: Provides terminal and M12
connector options for convenient electrical connections.
- Suitable Temperature Compensation: The compensation temperature
range of 0-60℃ ensures accurate measurement in a certain
temperature environment.
Application
It is the best micro pressure measurement equipment for textile
machinery,natural gas pipeline monitoring,dust removal system,
HVAC,clean laboratory and medical equipment etc.
Product Description
| Intelligent Macro Differential Pressure Transmitter |
| Applicable media | Gas, Steam |
| Pressure Measurement | Gauge pressure, Differential pressure |
| Pressure range | -0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa |
| Accuracy | ±0.1%FS |
| Stability | 0.8%F.S./Year |
| Max overload | 250% of sensor range |
| Output signals | 2-Wire 4-20mA/0-10V/RS485/2xPNP |
| Electrical Connections | Terminal or M12 |
| Power Supply | 12-32V DC |
| Compensation Temperature | 0-60℃ |
